Flanges Specification
| Specification | ASTM A182 / ASME SA182 |
| Supporting Flange Material | Flanges Bolts, Ring Joint, Gasket |
| Design For Size | JIS Flanges, ANSI Flanges, BS Flanges, EN Flanges, ASA Flanges, ASME Flanges, DIN Flanges, PN Flanges |
| Common Types of SS Flange | Flanges 150 LB WNRF 600# BLRF Class 300 RTJ Class 900 SORF |
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |

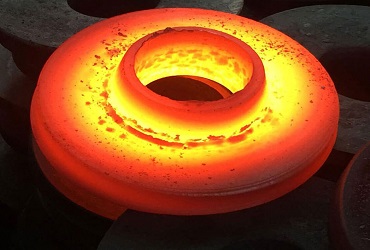

| Production Process | Forged, Heat Treated and Machined |
| Stainless Steel 304 Flanges Coating Flange Faces | Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized |
| Application | Chemical Industry Water Pipeline Industry Nuclear Power Plant Fabrication Industry Natural Gas Industry Oil And Gas Industry |
| Standards | JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, ASME B16.47 (Series A, Series B) Flanges |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Connect Type Type | RF, FF, RTJ, LMF, SMF, LJF |
| Flange Machining Equipment | Sand-blasting machine, Press machine, Bending machine, Pushing Machine, electric bevelling machine etc |
Material & Grade
| Stainless Steel | ASTM A182 , A240 F 202, 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L |
| Duplex Steel | ASTM A182, A240 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Super Duplex Steel | ASTM A182 / ASME SA182 UNS NO. S32750 / S32760 / S32950 |
| Carbon Steel | ASTM / ASME A 105, A53 GR B, A106GR B, API5L GRADE B, API 5L, GRX42 / 46 / 52 / 56 / 60 / 65 / 70, A333 GR 1/GR 3/GR 6, A/SA 672 GR 8C60/C70 etc.. |
| Alloy Steel | ASTM / ASME A182 GR F 5, F 9, F 11, F 12, F 22, F 91. |
| Nickel Alloy | ASTM SB564, SB160, SB472, SB162 Nickel 200 (N02200), Nickel 201 (N02201), Nickel 205 (N02205) |
| Monel | ASTM / ASME SB164 Monel 400 (N04400), Monel 500 (N05500) |
| Inconel | ASTM SB564, SB160, SB472, SB162 Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750, Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286 |
| Hastelloy | ASTM SB564, SB160, SB472, SB162 Hastelloy C22, Hastelloy C276, Hastelloy C4, Hastelloy B, Hastelloy C-2000 |
| Cupro Nickel Alloy | ASTM SB61, SB62, SB151, SB152 UNS No. C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30), UNS No. C10100, 10200, 10300, 10800, 12000, 12200 |
Equivalents of grade Flanges
|
MATERIAL
|
ASTM | EQUIVALENT STANDARD | |||
| UNS | GRADE (TP) | DIN (EN) | AFNOR (NF) | JAPAN (JIS) | |
|
AUSTENTIC STAINLESS STEEL
|
S30400 | 304 | 1.4301 | Z6CN18-09 | SUS304 |
| S30403 | 304L | 1.4307 | Z2CN18-10 | SUS304L | |
| S31600 | 316 | 1.4401 | Z6CND17-11 | SUS316 | |
| S31603 | 316L | 1.4404 | Z2CND17-12 | SUS316L | |
| S31635 | 316Ti | 1.4571 | Z2CND17-12 | - | |
| S32100 | 321 | 1.4541 | Z6CNT18-10 | SUS321 | |
| S34700 | 347 | 1.455 | Z6CNNb18-10 | SUS347 | |
| S30409 | 304H | 1.4948 | Z6CN19-10 | SUS304H | |
| S31609 | 316H | 1.4919 | Z6CND17-12 | SUS316H | |
| S32109 | 321H | 1.4941 | Z10CND18-10 | SUS321H | |
| S31000 | 310 | - | - | SUS310 | |
| S31703 | 317L | 1.4438 | - | SUS317L | |
|
FERRITIC STAINLESS STEEL
|
S40500 | 405 | 1.4002 | Z6CAL13 | SUS405 |
| S41000 | 410 | 1.4006 | Z12C13 | SUS410 | |
| S43000 | 430 | 1.4016 | Z10C17 | SUS430 | |
|
DUPLEX STAINLESS STEEL
|
S32205 | 2205 | 1.4462 | Z2CND22-06 | - |
| S31803 | - | 1.4462 | Z2CND22-05 | - | |
Flanges Application
Areas of Expertise:
- Use in Heat Exchangers
- Use in Automotive industries
- Use in Aerospace
- Use in Medical
- Use in Pharmaceutical
- Use in Oil coolers
- Use in Economizers
- Use in Condenser
- Use in Pulp and paper
- Use in Offshore construction
- Use in Hydraulic & Pneumatic system
- Use in Nuclear Power Plants
